Premium Industrial Series

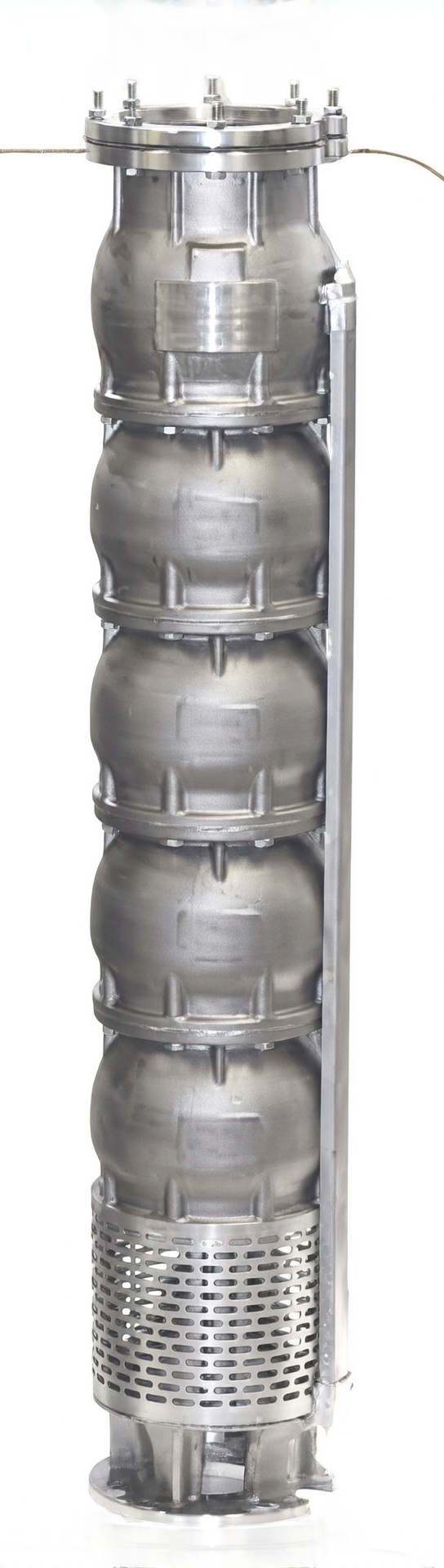

NHD6
Submersible Vertical Pump & Vertical Turbine Pump
Delivery
Up to 90 m³/h
Head
374 m
Maximum efficiency
78%
Technical Specifications
DeliveryUp to 90 m³/h
Head374 m
Max. pump diameter145 mm
Max. suspended sand50 g/m³
Maximum efficiency78%
Standard delivery outletRp 3" (Rp 4" optional)
NEMA optionAccording to need
Outlet typePipe thread or flange
Advantages
Superior efficiency
Longer life
Low plant and operating cost
Vertical and horizontal installation
Does not require maintenance for a long time
Hassle-free spare parts supply
Environmentally friendly and recyclable
NHD6 Series Variants

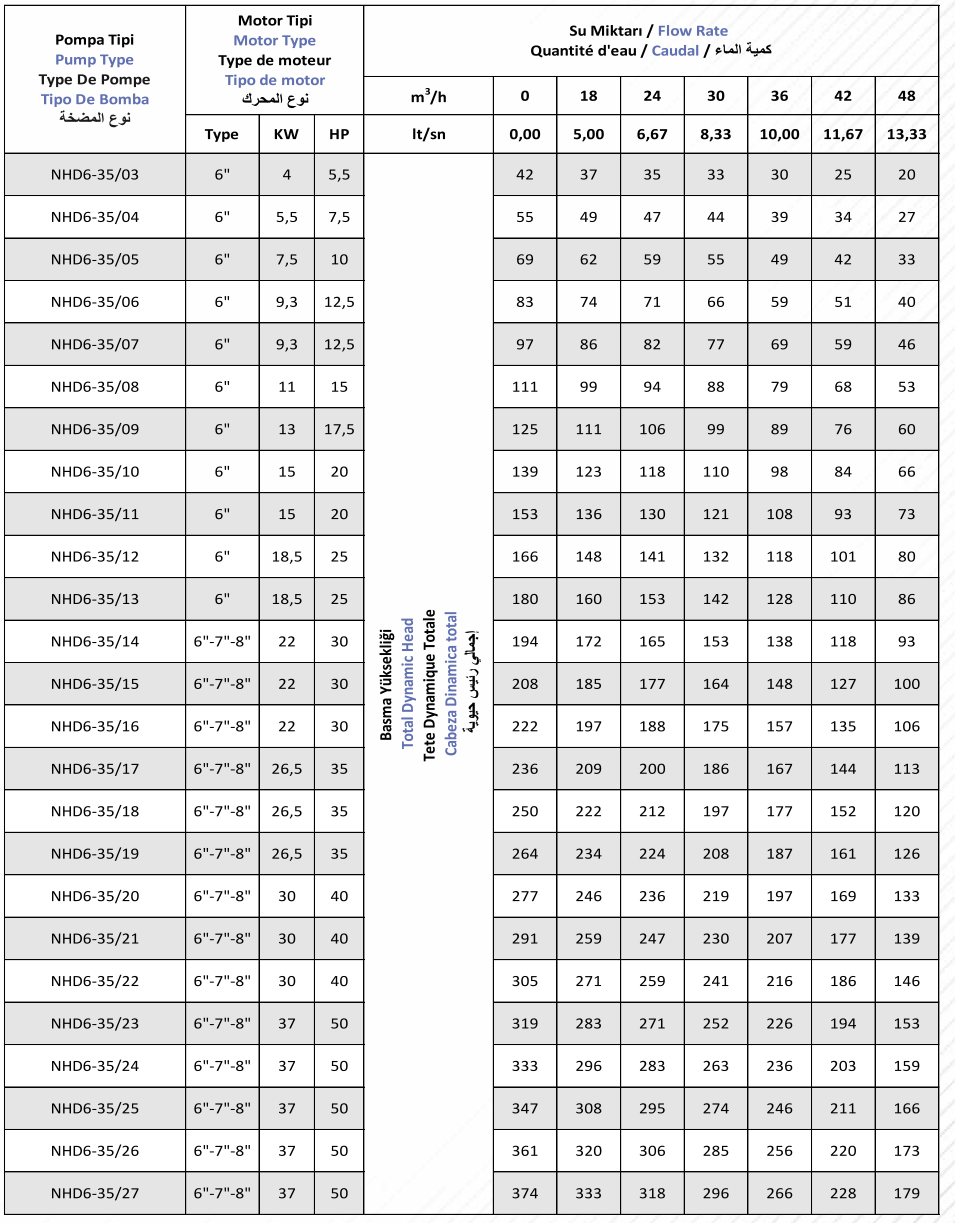

NHD6-35
Inquire via WhatsApp

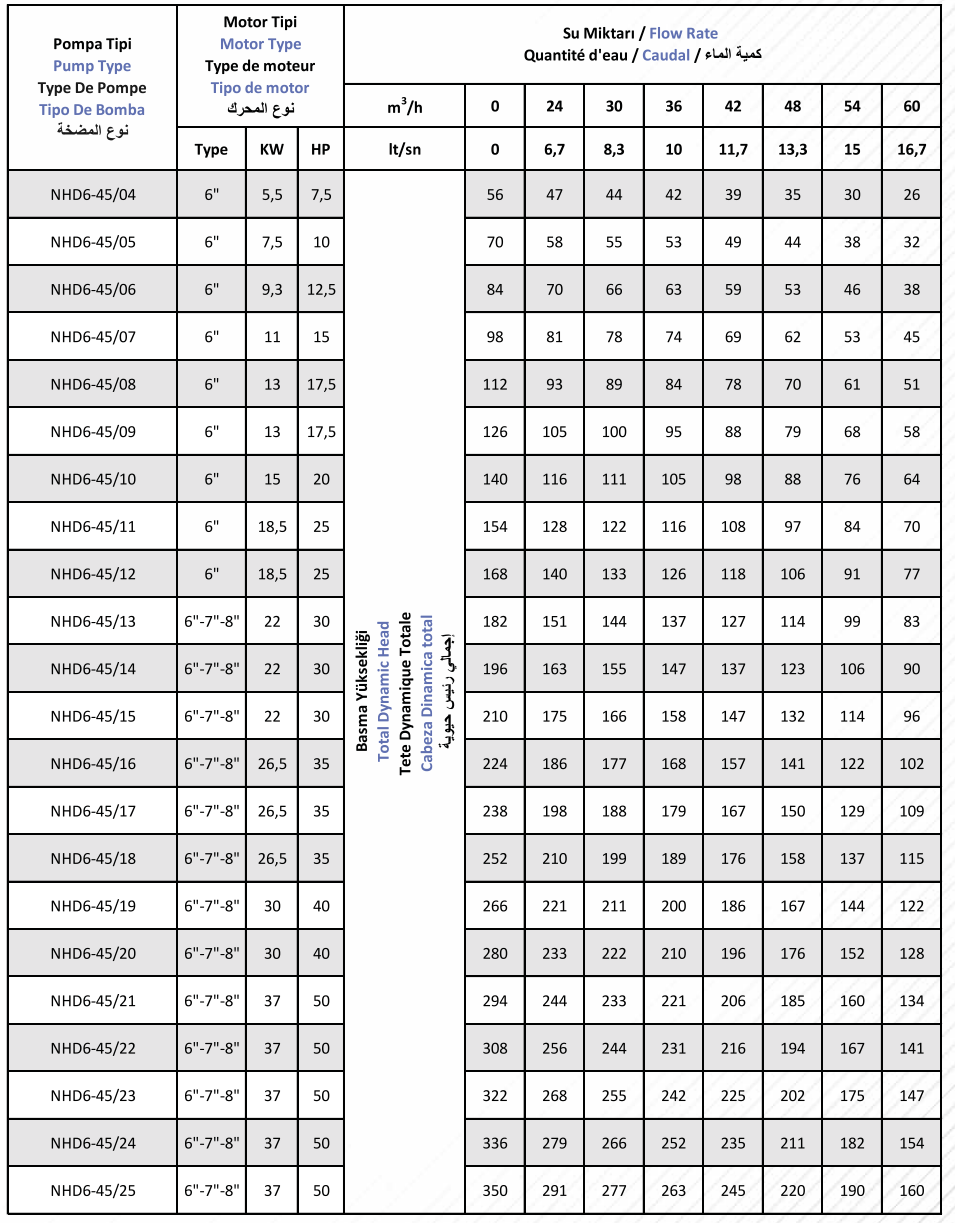

NHD6-45
Inquire via WhatsApp

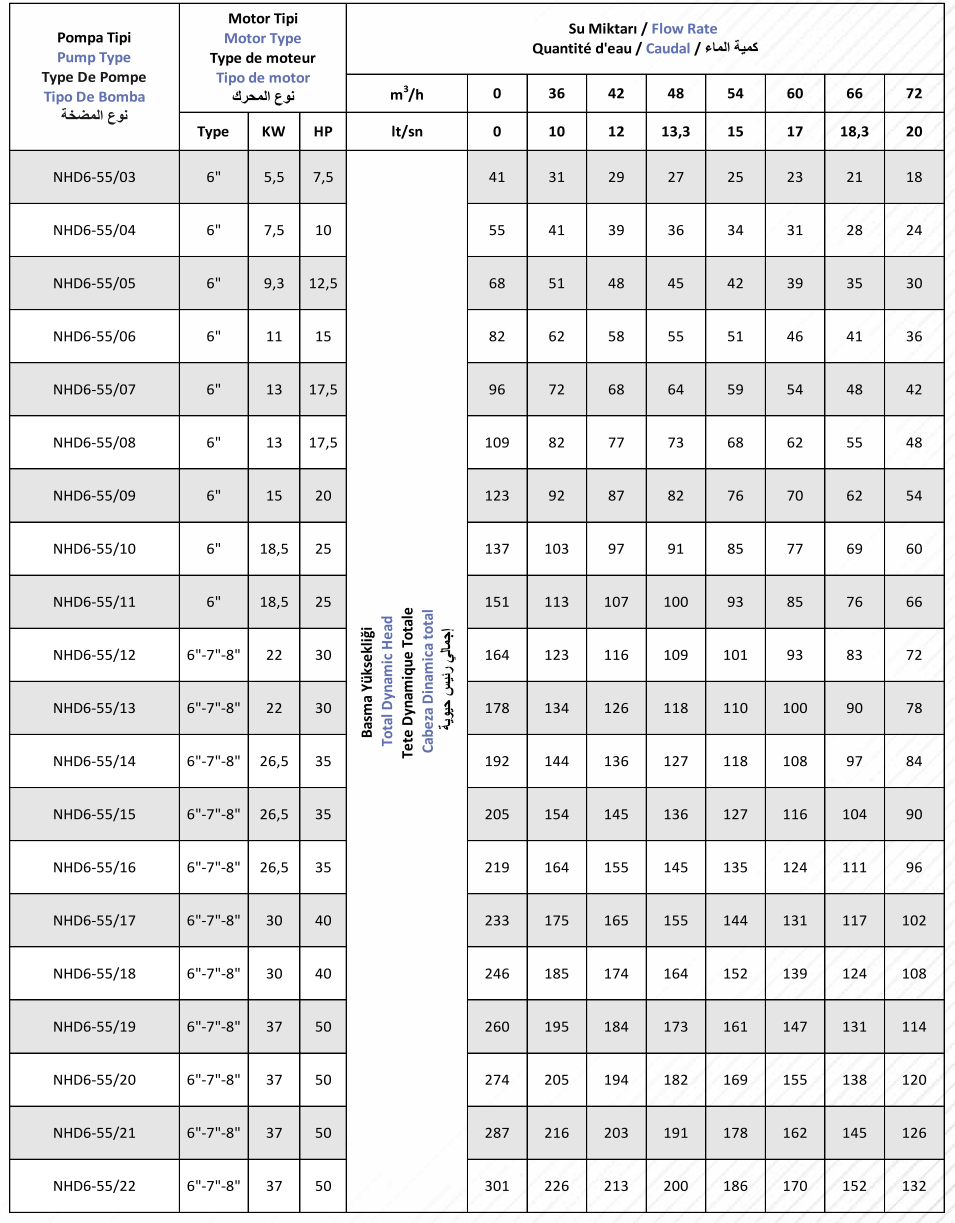

NHD6-55
Inquire via WhatsApp
