Premium Industrial Series
NHD10
Stainless Casting Pump
Delivery
Up to 348 m³/h
Head
493 m
Maximum efficiency
81%
Technical Specifications
DeliveryUp to 348 m³/h
Head493 m
Max. pump diameter250 mm
Max. suspended sand50 g/m³
Maximum efficiency81%
Standard delivery outletRp 6" for all versions
NEMA optionAccording to need
Outlet typePipe thread or flange
Advantages
Superior efficiency
Longer life
Low plant and operating cost
Vertical and horizontal installation
Does not require maintenance for a long time
Hassle-free spare parts supply
Environmentally friendly and recyclable
NHD10 Series Variants

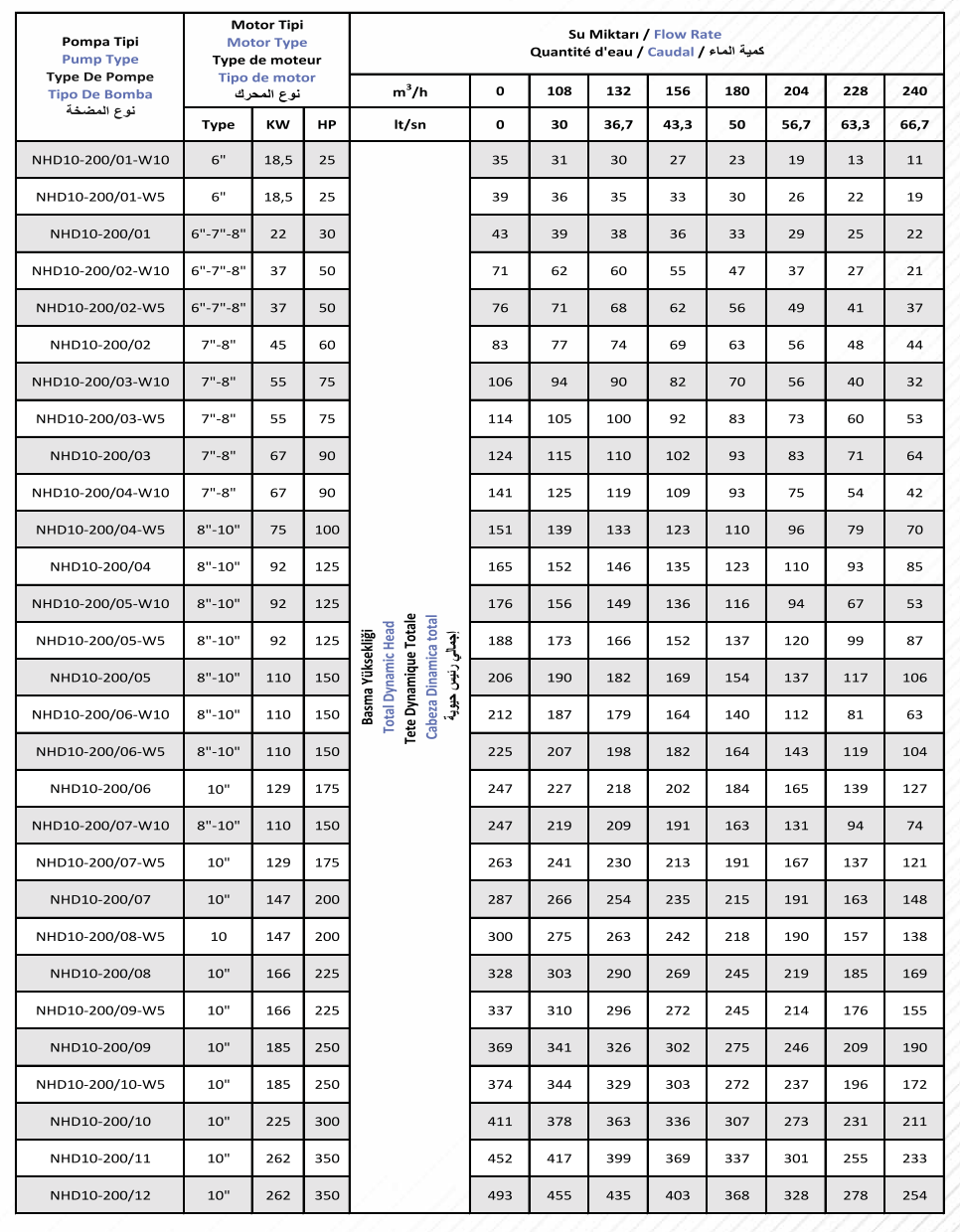

NHD10-200
Inquire via WhatsApp

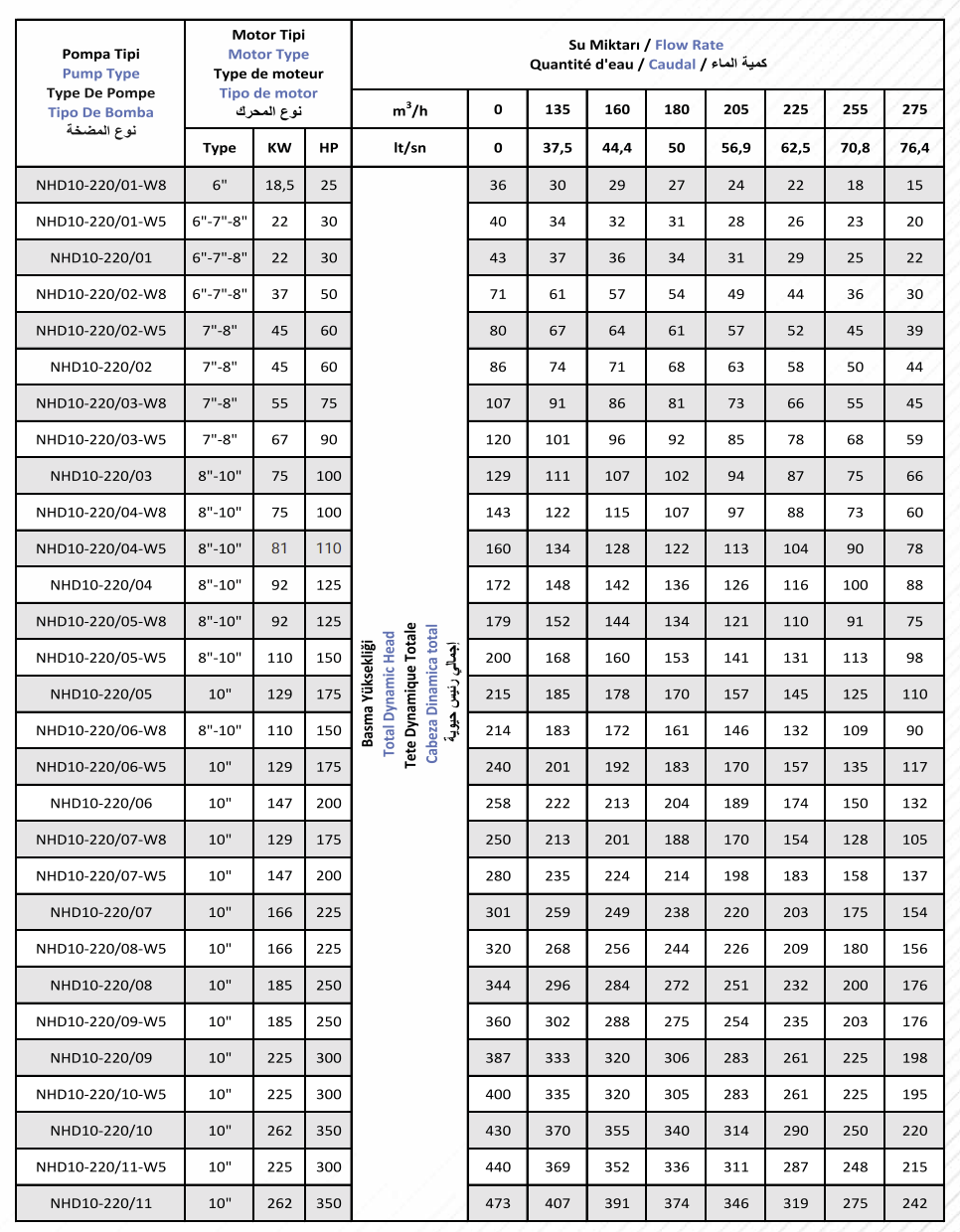

NHD10-220
Inquire via WhatsApp

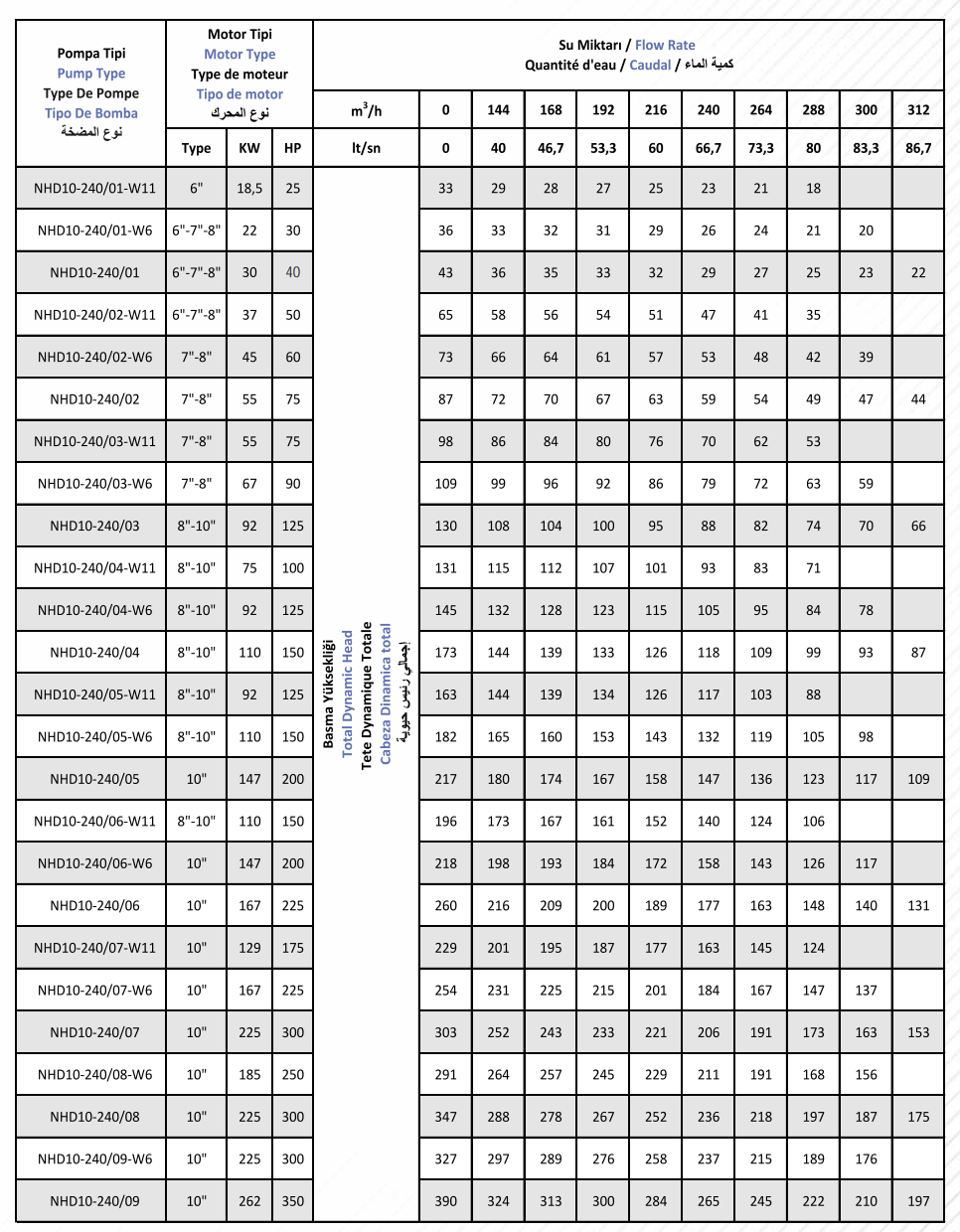

NHD10-240
Inquire via WhatsApp
